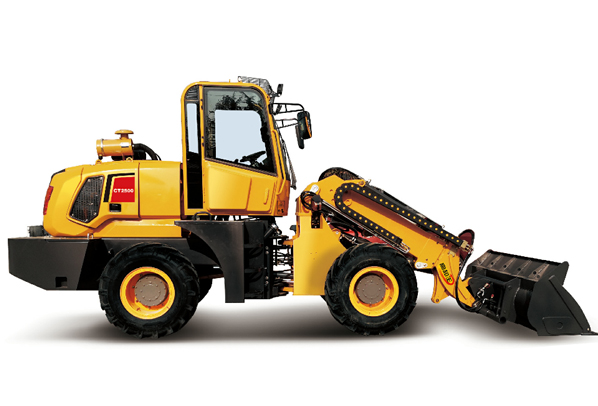

| CY2500 telescopic loader伸缩臂装载机 | |
| 1.0 Engine发动机 | |
| (1) Brand/Model: 品牌/型号 | Yunnei YN48GBZ 云内 |
| (2) Type:类型 | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine |
| 直列,水冷,四缸,涡轮增压柴油发动机 | |
| (3) Rated Power:额定功率 | 92KW |
| (4) Optional Model: | EPA4 KANGMINGSI 97KW engine;EPA4福康发动机 |
| 可选发动机 | CUMMINS 125HP engine;东风康明斯发动机 |
| 2.0 Overall Dimensions | |
| (1) Overall Length:长度 | 7100mm |
| (2) Overall Width:宽度 | 2100mm |
| (3) Overall Height:高度 | 2800mm |
| (4) Bucket hinge pin Height:铲斗铰接销轴高度 | 5300mm |
| (5)Telescopic stroke伸缩行程 | 1330mm |
| (6)Extend the arm length 伸出后臂长 |
3400mm |
| (7) Bucket Max.lift height 铲斗zui大举升高度 |
7100mm |
| (8) Bucket Max.unloading height铲斗zui大卸载高度 | 5000mm |
| 4000mm | |
| 3.0 Transmission System：传动系统 | |
| Gearbox+Hydraulic converter + Drive shaft + Hub reduction axle | |
| 变速箱+液压变矩器+传动轴+轮边减速桥 | |
| 4.0 Bucket：铲斗 | |
| (1) Capacity: 容量 | 1.3m³ |
| (2) Width: 宽度 | 2100mm |
| (3) Type:类型 | Heavy-duty bolt on teeth重型铲齿 |
| (5) Max. Load: zui大载重 |
2500kg including bucket or attachment 包含铲斗或者辅具 |
| 5.0 Operating Specifications | |
| (1) Steering System: 转向系统 |
Articulated hydraulic steering 铰接式液压转向 |
| (2) Driving System: 驱动方式 | Four wheel drive四轮驱动 |
| (3) Hydraulic quick release 液压快换 |
Yes 是的 |
| (4) Mechanical pilot joystick | Yes 是的 |
| 液压先导 | |
| (5) Steady rise平稳上升 | Yes 是的 |
| 6.0 Brake System 刹车系统 | |
| (1) Service Brake:脚刹 | Four wheel disc brake 四轮碟刹 |
| (2) Parking Brake:手刹 | Disc brake 碟刹 |
| 7.0 Tyre 轮胎 | |
| (1) Model:型号 | 16/70-24 Herringbone Tyre |
| (2) Size:尺寸 | 宽度Width: 410mm 直径Diameter: 1175mm |
| 8.0 Wheel base: 轴距 2800mm | |
| 9.0 Track: 轮距 1700mm | |
| 10.System pressure:系统压力 | 20Mpa |
| 11. Weight:重量 | 6800KG |
|
